Cambium Networks ePMP 3000 5GHz AP

  • 5 GHz-Richtfunk
  • 4x4 MU-MIMO bis zu 1.2 Gbps
  • 256QAM-5/6, 80 MHz Support
  • Bis zu 120 Clients
  • 128-bit AES Verbindungs Verschlüsselung
  • IP55 Zertifiziert
  • Artikel-Nr: C050910A203A

    Artikel-ID: 20856

    Vorbestellbar
    1.100,96 EUR *
    * inkl. ges. MwSt. zzgl. Versandkosten Netto 925,18 EUR
    www.OMG.DE ist zertifiziert durch Trusted Shops
    Gerne informieren wir Sie, sobald der Artikel wieder verfügbar ist.

    Um die Verfügbarkeitsbenachrichtigung nutzen zu können, stimmen Sie bitte dem "Google reCaptcha" Cookie unter dem Bereich "Sonstiges" zu und aktualisieren Sie die Seite neu.

    Cookiebanner öffnen

    Produktinformationen

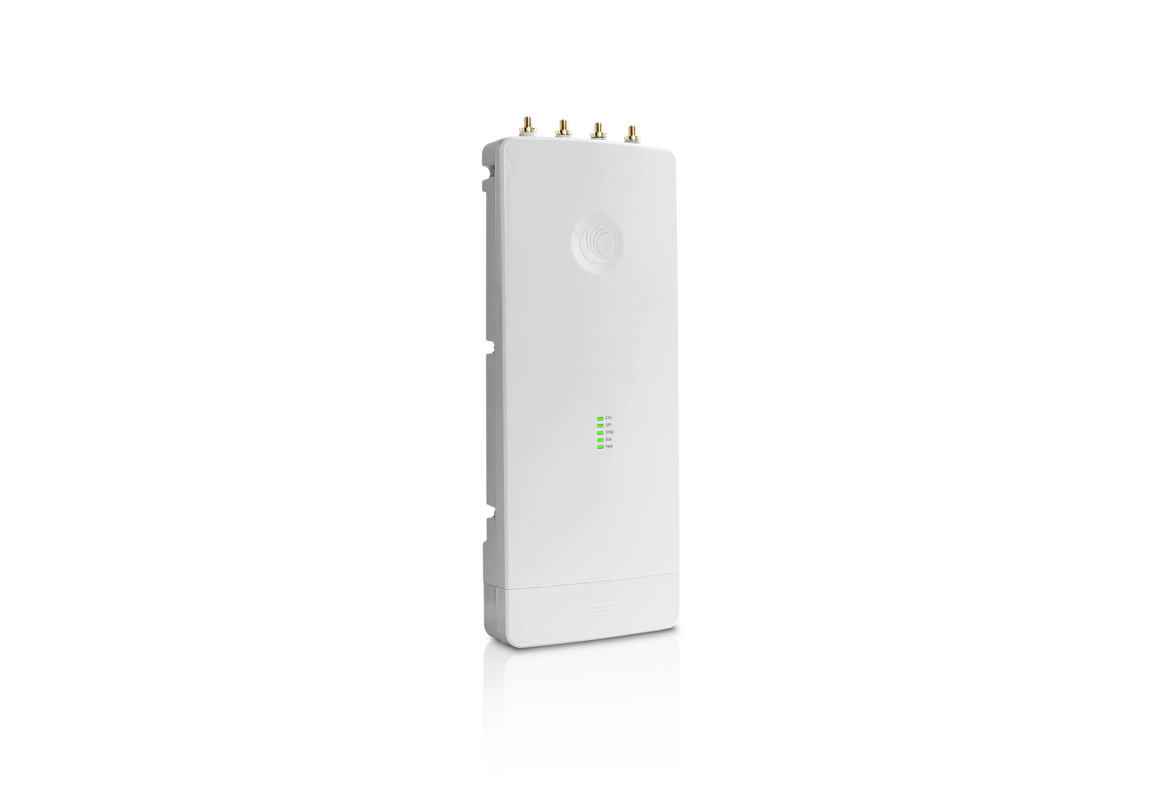

    Cambium ePMP 3000 5GHz AP
    Der Cambium ePMP 3000 5GHz AP ist eine 5-GHz-Richtfunkeinheit, der störungsarme und durchsatzstarke Verbindungen ermöglicht.
    Der ePMP 3000 verfügt über intelligentes "Noise Filtering" durch Nutzung von dynamischen und statischen Filtern.
    Des Weiteren beherrscht der AP "FREQUENCY RE-USE" durch dieses Verfahren lassen sich in back-to-back Szenarien Frequenzen doppelt nutzen.

    Features:

    • 4x4 MU-MIMO bis zu 1.2 Gbps
    • Bis zu 120 Clients
    • Bis zu 64km Reichweite mit der ePMP 3000 4X4 90° Sector Antenne
    • 128-bit AES Verbindungs Verschlüsselung
    • GPS Synchronisation
    • Smart Beamforming und Beam Steering

    Einsatzgebiete:

    • Punkt zu Punkt
    • Punkt zu Multipunkt
    • Anbindung einer hohen Anzahl von gleichzeitigen Clients
    • Ideal für stark frequentierte Gebiete.

    Technische Daten

    Spezifikationen

    Eigenschaft Wert
    Artikel C050910A203A
    Channel Spacing Configurable on 5 MHz increments
    Frequency Range 4910 – 5980 MHz (exact frequencies as allowed by local regulations)
    Channel Width 20 | 40 | 80 MHz
    MAC (Media Access Control) Layer Cambium Proprietary
    Physical Layer 4X4 MUMIMO/OFDM
    Ethernet Interfaced 100/1000BaseT, rate auto negotiated, 802.3at compliant & Aux SFP port
    Powering Methods Supported 56 V PoE (included), standard 802.3at PoE Supply, or CMM5 with 56 V and 5 pin to 7 pin cross over cable adapter
    Protocols Used IPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
    Network Management HTTPs, SNMPv2c, SSH
    VLAN 802.1Q with 802.1p priority
    Subscribers per Sector Up to 120
    ARQ C050910A203A
    Nominal Receive Sensitivity (w/FEC) @20 MHz Channel C050910A203A
    Nominal Receive Sensitivity (w/FEC) @40 MHz Channel C050910A203A
    Nominal Receive Sensitivity (w/FEC) @80 MHz Channel C050910A203A
    Modulation Levels (Adaptive MCS0 (BPSK) to MCS 9 (256 QAM 5/6)
    GPS Synchronization Yes
    Quality of Service Three level priority
    DSO Dynamic Spectrum Optimization. Ability to change channels based on interference detection on current channel
    Fast DFS Change to alternate radar free channel with background availability check
    Antenna Sector Antenna (C050910D301A ) Available
    Transmit Power Range 0 to +32 dBm (combined, to regional EIRP limit) (2 dB interval)
    Sector Antenna Connection 4 x 50 ohm, RP (Reverse Polarity) SMA
    Beamforming Antenna Connection 2 x 50 ohm, RP (Reverse Polarity) SMA, DC Coupled (powering antenna)
    GPS Antenna Connection 1 x 50 ohm, RP (Reverse Polarity) SMA
    Surge Suppression 1 Joule Integrated. C000000L033A - 56V Gigabit surge suppressor recommended for optimal surge protection
    Environmental IP55
    Temperature -30°C to +55°C
    Power Consumption 25 W Maximum
    Input Voltage 44 V to 59 V
    Weight 1.3 kg
    Dimensions 137 x 330 x 45 mm
