NetAlly EtherScope nXG EXG-300 Portable Network Expert

Netzwrk-Tester
All-in-One
Testen, Verifizieren und Fehlersuche
NBASE-T-, 10G- und WiFi 5/6 Netzwerke
Cloud-Berichterstattung

Artikel-Nr: EXG-300E

Artikel-ID: 27255

Vorbestellbar

12.965,05 EUR ^*

* inkl. ges. MwSt. zzgl. Versandkosten Netto 10895,00 EUR

Gerne informieren wir Sie, sobald der Artikel wieder verfügbar ist.

Produktinformationen

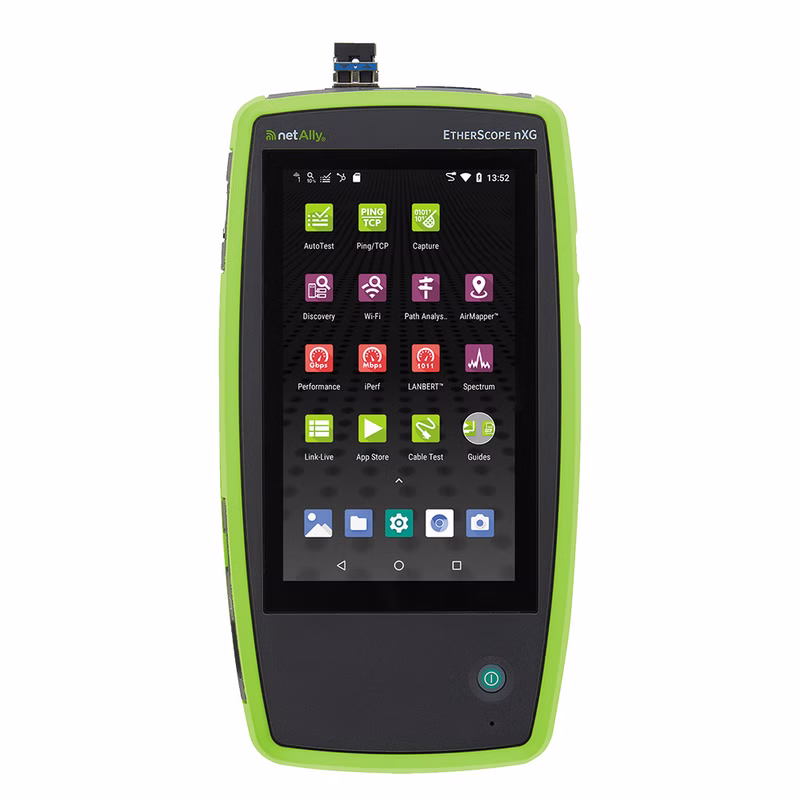

NetAlly EtherScope nXG EXG-300 Portable Network Expert

Der EtherScope™ nXG Portable Network Expert ist ein All-in-One-Handheld-Netzwerkanalysator mit mehreren Technologien - von der Bereitstellung über die Wartung bis hin zur Dokumentation von WiFi und Ethernet.

Features

Testen, Verifizieren und Fehlersuche für technische Upgrades
NBASE-T-, 10G- und WiFi 5/6 Netzwerke mit fortschrittlichen Android-basierten Fehlerbehebungs-Apps
10G-Kupfer-/Glasfaserkabel- und WiFi-Leistungsprüfungen für kritische Verbindungen und wichtige Geräte
Konsolidieren, Analysieren und Verwalten von Feldprüfdaten über den kostenlosen Link-Live™ Cloud-Service
Integrierte Bluetooth v5/BLE- und USB-Schnittstellen zur Erkennung und Konfiguration von Geräten in der Nähe

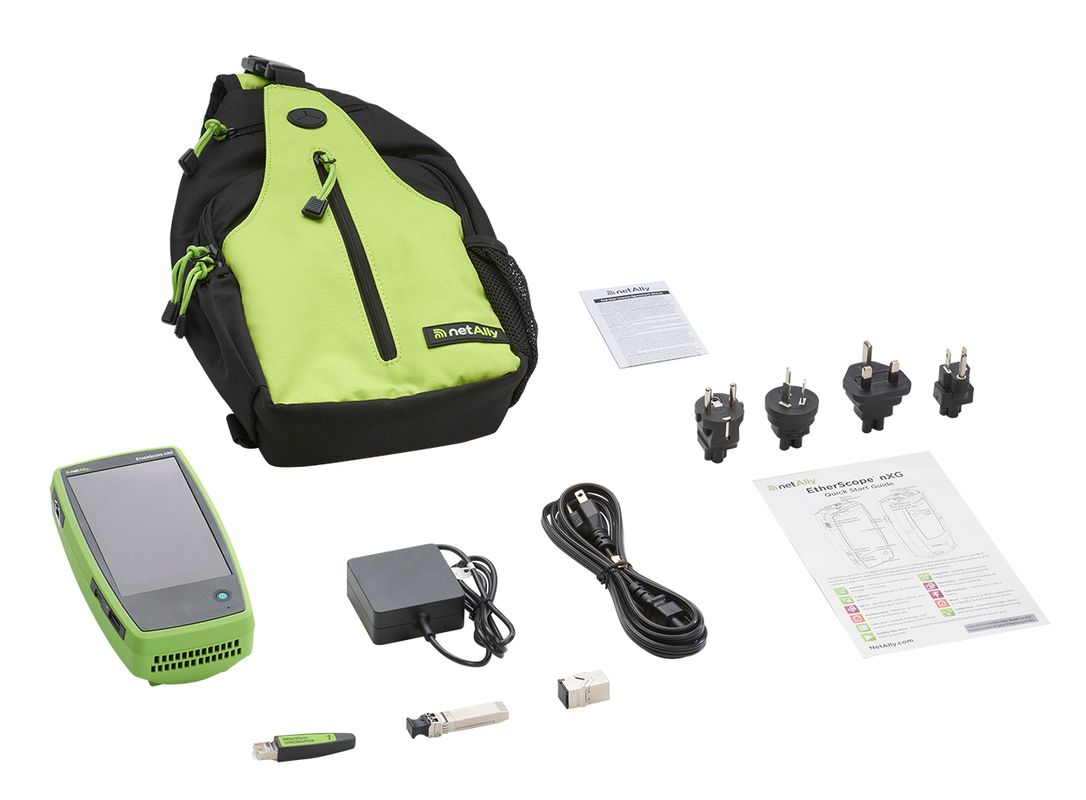

Lieferumfang: EXG-300 mit einem Jahr AllyCare-Support (EXG-300-1YS), Li-ION-Akku, G3-PWRADAPTER, SFP+MR-10G850, Inline-RJ-45-Kupplung, WIREVIEW 1, Kurzanleitung und Umhängetasche

Technische Daten

Spezifikationen

Eigenschaft	Wert
Dimensions	102 mm x 196 mm x 42 mm
Weight	0.48 kg
Battery	Rechargeable lithium-ion battery pack (3.63 V, 9.75 A, 35.39 Wh)
Battery Life	Typical operating life is 10 hours (Battery life from full charge varies depending on the feature being used); Typical charge time is 3-4 hours.
Display	5.0-inch color LCD with capacitive touchscreen (720 x 1280 pixels)
Host Interface	2 USB Type-A Ports USB Type-C Power and On-the-Go Port RP-SMA External Antenna Port
Memory	Approximately 8 GB available for storing test results and user applications
Charging	USB Type-C 45-W adapter: AC Input Power 100-240 V, 50-60 Hz; DC Output Power 15V (3A)

Wireless
AirCheck G3 has two internal Wi-Fi Radios	Testing – 2×2 Tri-band 802.11ax wireless radio (IEEE 802.11a/b/g/n/ac/ax compliant) Management – 1×1 Dual-band 802.11ac Wave 2 + Bluetooth 5.0 and BLE wireless radio (IEEE 802.11a/b/ g/n/ac compliant)
Specification Compliance	IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax
Wi-Fi Connectivity	802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax
Operating Frequencies	Frequencies of channels received and transmitted: 2.4 GHz band: 2.412 to 2.484 GHz (channel 1 to channel 14)* 5 GHz band: 5.170 to 5.320 GHz, 5.500 to 5.700 GHz, 5.745 to 5.825 GHz (channel 36 to channel 165)* 6 GHz band: 5.925 to 7.125 GHz (channel 1 to channel 233)* () Where allowed by country regulations. NOTE: The tester transmits only on the frequencies allowed in the country where it is operating.*

Antennas
Internal Wi-Fi Antennas	Minimum gain 2.0 dBi peak in the 2.4 GHz band, 1.5 dBi peak in the 5 GHz band, and 2.7 dBi peak in the 6 GHz band.
External Directional Antenna	Antenna, frequency range 2.4 to 2.5 GHz, 4.9 to 5.9 GHz. and 6.0 to 7.1 GHz Minimum gain 6.4 dBi peak in the 2.4 GHz band, 8.9 dBi peak in the 5 GHz band, and 8.6 dBi peak in the 6 GHz band.

Environmental
Operating Temperature	0°C to +45°C NOTE: The battery will not charge if the internal temperature of the device is above 95°F (35°C)
Operating relative humidity (% RH without condensation)	90% (10°C to 35°C) 35°C to 45°C
Storage temperature	-20°C to +60°C
Shock and vibration	Meets the requirements of MIL-PRF-28800F for Class 3 Equipment
Safety	IEC 61010-1:2010: Pollution degree 2
Altitude	Operating: 4,000 m; Storage: 12,000 m
EMC	IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class A
