Ubiquiti UISP Wave Professional - Wave-Pro

60 GHz-Richtfunk
UISP Serie
PtP und PtMP
bis zu 5,4 Gbit/s
5-GHz-Backup

Artikel-Nr: Wave-Pro

Artikel-ID: 28521

Vorbestellbar

647,72 EUR ^*

* inkl. ges. MwSt. zzgl. Versandkosten Netto 544,30 EUR

Gerne informieren wir Sie, sobald der Artikel wieder verfügbar ist.

Produktinformationen

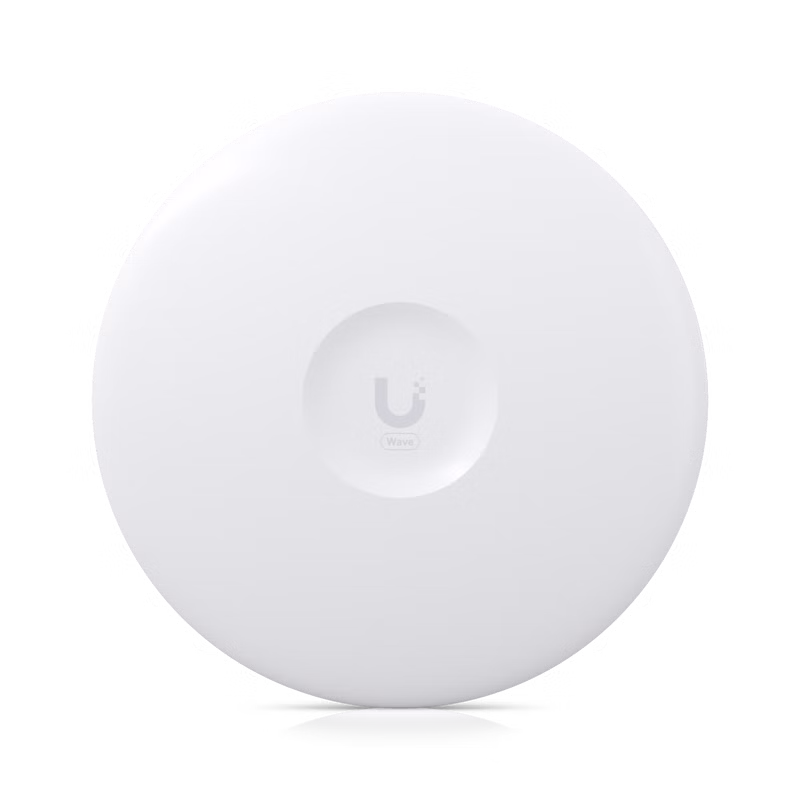

Ubiquiti UISP Wave Professional - Wave-Pro

Der Ubiquiti UISP Wave Professional ist eine 60 GHz-Richtfunkkomponente, die sowohl für PtP und PtMP-Verbindungen geeignet ist.

Features

60 GHz Punkt-zu-Punkt und Punkt-zu-Mehrpunkt
PtP Reichweite: bis zu 15 km
PtMP Reichweite: bis zu 8 km (Wave AP), bis zu 6 km (Wave AP Micro)
5,4 Gbit/s (2,7 Gbit/s Duplex) maximaler Durchsatz
IPX6 wetterfest
wetterbeständiges Backup-Radio mit 5 GHz und mehr als 800 Mbit/s
2x 2,5-GbE- und 1x 10G-SFP+-Ports
ergonomischer Transportgriff
integriertes GPS und Bluetooth

Technische Daten

Mechanisch

Eigenschaft	Wert
Maße	Ø424.4 x 166.2 mm
Größe	Without mount: 2.8 kg With mount: 4 kg
Material	Aluminum alloy, UV stabilized plastic

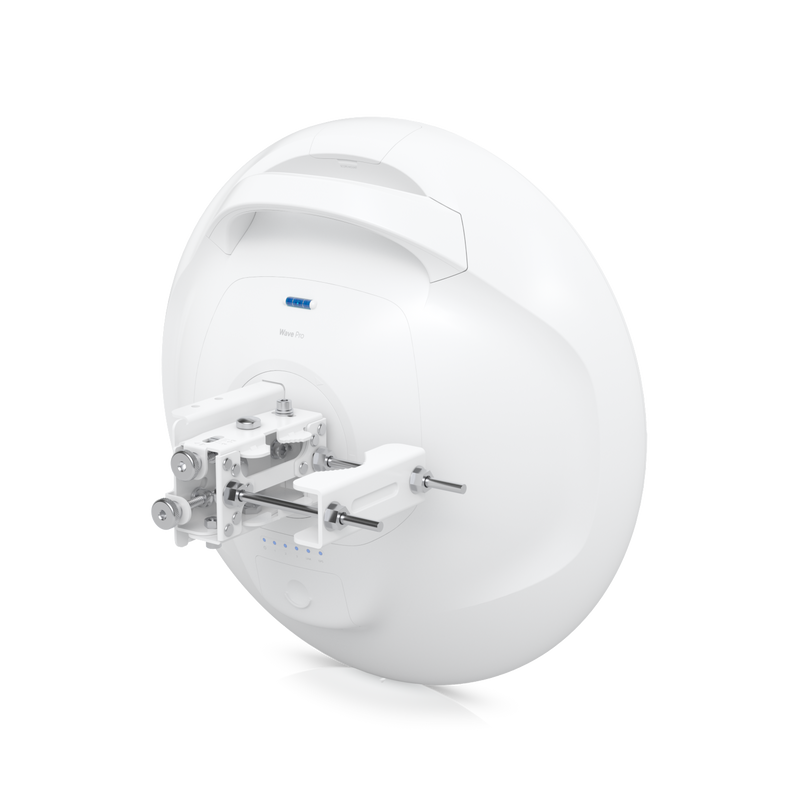

Mount Material	Stainless steel
Pole mount diameter	25 to 76.2 mm on pipe outer diameter
Wind loading	369 N at 200 km/h
Weatherproofing	IPX6

Eigenschaft	Wert
Hardware
Processor	Quad-core ARM® Cortex®-A53 at 1.4 GHz
Memory	DDR3L 512 MB

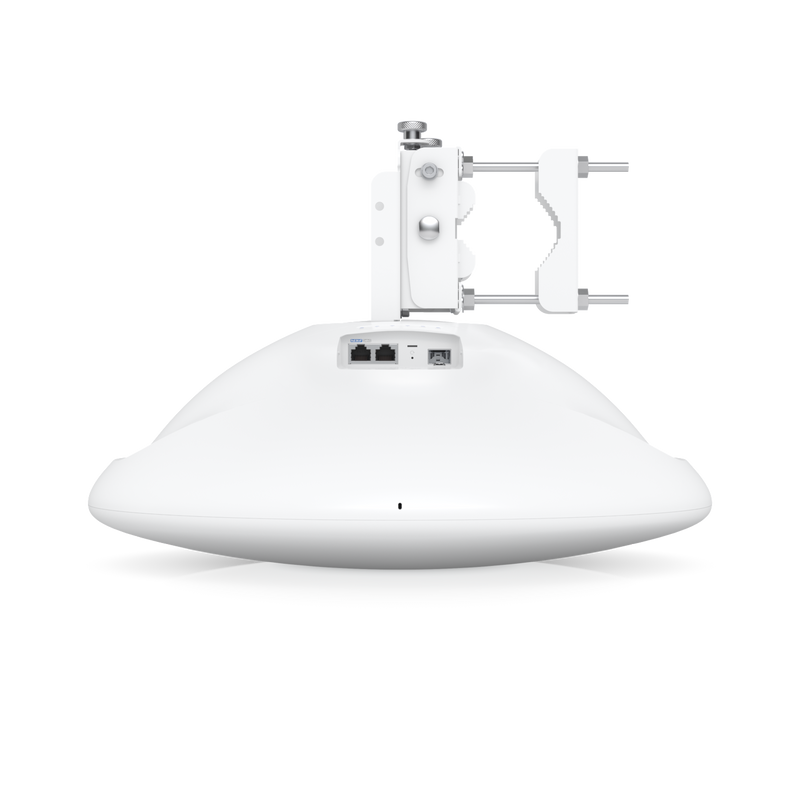

Networking interface	(2) 2.5 GbE RJ45 ports (1) 10G SFP+ port
Max. power consumption	26W
Power method	Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply	48V DC, 0.65A, 2.5 GbE PoE adapter (included)
Supported voltage range	44–54V DC 22–27V DC
GPS	Yes
Button	Factory reset
LEDs	Power, (2) Ethernet, SFP+ , GPS, link
Operating temperature	-40 to 60° C (-40 to 140° F)
Operating humidity	5 to 95% noncondensing
Certifications	FCC, IC, CE

Eigenschaft	Wert
System
Total throughput	5.4 Gbps (2.7 Gbps duplex)
Max. range	PtP: Up to 15 km PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro)
Encryption	WPA2-PSK (AES)

Eigenschaft	Wert
Software
Operating mode	PtP, PtMP station
Ubiquiti specific features	Integrated 60 GHz radio, discovery protocol, Wave technology
Services	UISP, ping watchdog, NTP client, SNMP
Tools	Antenna alignment, discovery utility, ping, trace route, speed test
Network	Bridge/Router* mode *Router is available in PtMP station mode only.
Application requirements	UISP: Version 2.3.0 and later

Eigenschaft	Wert
RF
Operating frequency*	57 to 71 GHz *Depends on regulatory region.
Channel bandwidth	2160, 1080 MHz
Operating channels*	58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region.
Modulation	16QAM, QPSK
Antenna gain	46 dBi
Polarization	Vertically linear
Beamwidth	Azimuth: 3 dB 1.3° Elevation: 3 dB 1.3°

Eigenschaft	Wert
Back-Up RF
WiFi Standard	802.11ax (WiFi 6)
Operating frequency* US/CA Worldwide	U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5150 - 5875 MHz *Depends on regulatory region.
Channel bandwidth	20, 40, 80 MHz
Max. conducted TX power	27 dBm
Modulation	BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
Antenna gain	22 dBi
Polarization	Dual-linear
Beamwidth	Azimuth: 3 dB 8° Elevation: 3 dB 8°
Cross-pol isolation	20 dB
