Cambium Networks ePMP 3000 Sektor Antenne

Name: Cambium Networks ePMP 3000 Sektor Antenne -
Brand: Cambium Networks
SKU: 4260
Price: 424.83 EUR
Availability: InStock

5 GHz 90 Grad Sektor Antenne

4x4 MU-MIMO

17 dBi gain

4.9 to 5.97 GHz Spektrum

Front-to-Back Ratio 30dBi

IP65 Zertifiziert

Artikel-Nr: C050910D301A

Artikel-ID: 20857

Lagerware - sofort verfügbar

424,83 EUR ^*

* inkl. ges. MwSt. zzgl. Versandkosten Netto 357,00 EUR

Produktinformationen

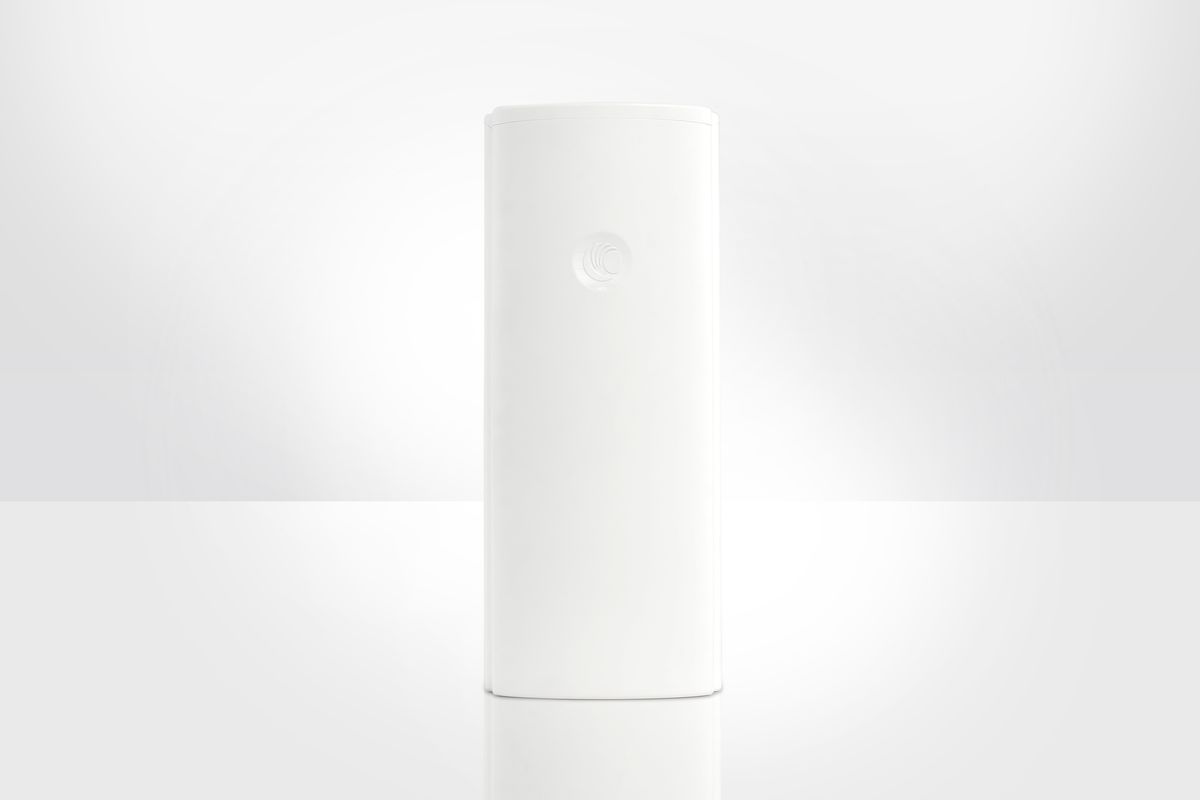

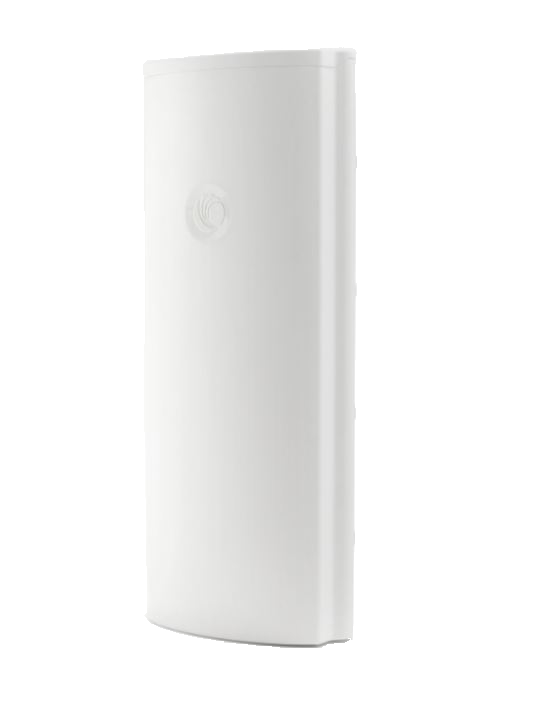

Cambium Networks ePMP3000 Sektor Antenne
Die Sektor Antenne hat einen 90° Öffnungswinkel und wurde für den Cambium ePMP 3000 AP entwickelt.

Features

Technische Daten

Spezifikationen

Eigenschaft	Wert
Artikel	C050910D301A
Frequency Range	4.9 GHz to 5.97 GHz
Gain	17 dBi
3 dB Beamwidth - Azimuth	70 degrees
3 dB Beamwidth - Elevation	6 degrees
Electrical Downtilt	-2 degrees
Polarization	2X Horizontal, 2X Vertical
Port-to-Port Isolation	> 20 dB
Front-to-Back Ratio	30 dB
Maximum Input Power	5 W
Input Impedance	50 ohms
Mounting Connectors	4 x RP SMA
Mounting Hardware	Included for mounting to mast diameters 5 cm to 10 cm -10 to +5 degree tilt Hardware included to connect ePMP access point to back of antenna body
Physical Dimensions	Antenna Body: (594 mm x 157 mm x 110 mm)
Weight	Antenna Body: 3.7 kg w/ ePMP 3000 Access Point and Mounting Brackets: 6.3 kg
Environmental	IP65
Radome Material	UV Protected ABS
Operating Temp	-40C to 60C
